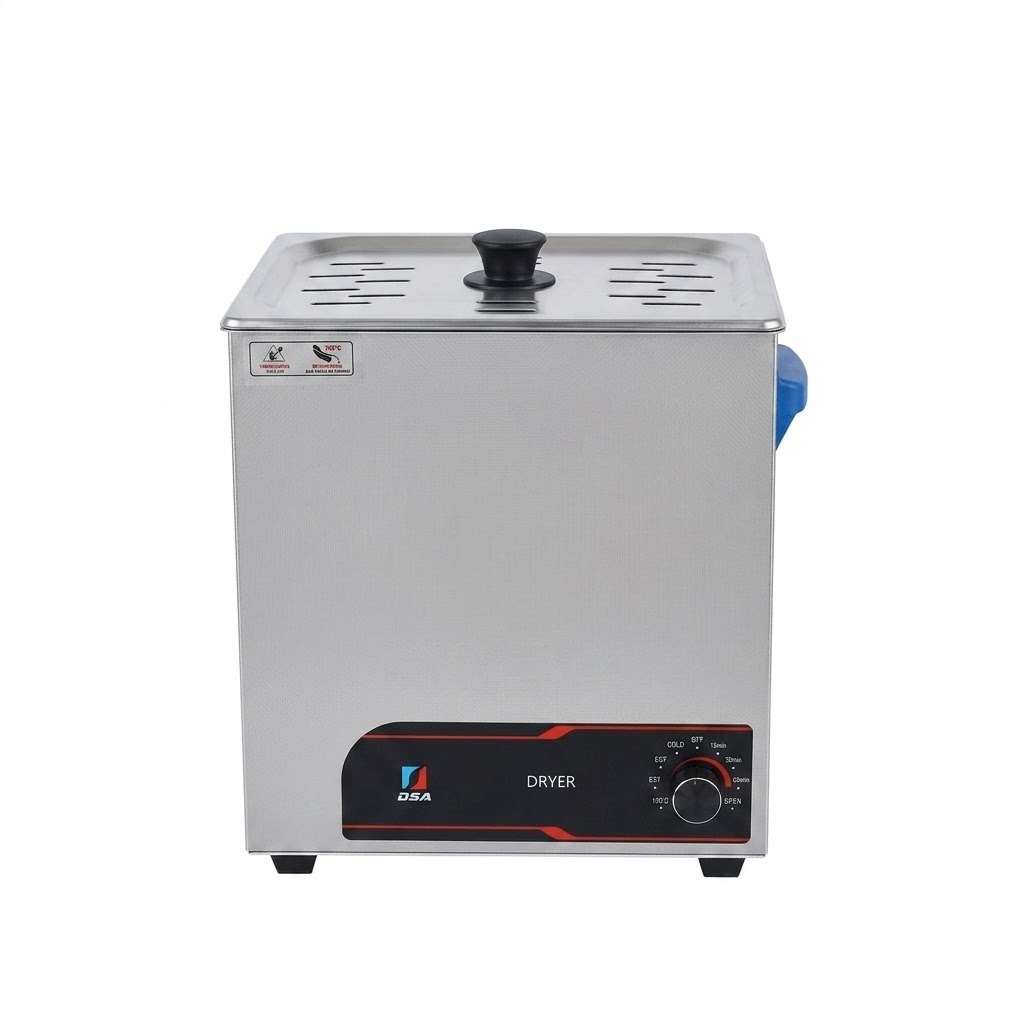

Warm Air Dryer for Dentist and Technician
Quickly dries instruments after ultrasonic cleaning, ready for sterilization.
Four temperature settings — Cold, 50 °C, 75 °C, 100 °C — suits instruments, models, and wax work.
Built-in timer (5 / 15 / 30 min or always-on) stops heating automatically when done.

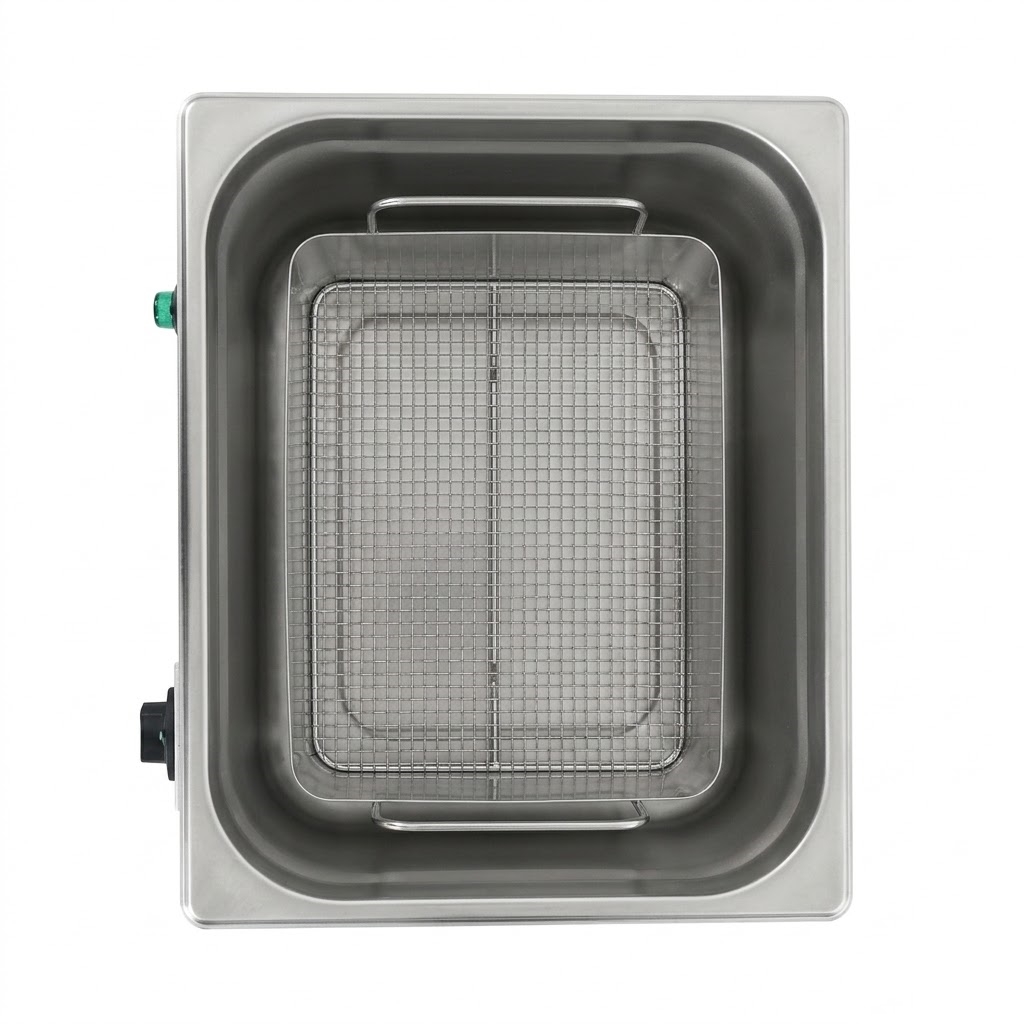

Hot air circulates evenly inside the chamber, eliminating manual towel drying and reducing cross-contamination.
Used in both the dental clinic for pre-sterilization and the dental lab for drying stone models and resin parts.
Specification
| Parameter | DSA-140DH (4.3 L) | DSA-280DH (14 L) | DSA-800DH (30 L) |
|---|---|---|---|
| Capacity | 4.3 L | 14 L | 30 L |
| Net weight | 5 kg | 10 kg | 18 kg |
| External size (L×W×H) | 280×170×305 mm | 325×265×350 mm | 530×330×410 mm |
| Chamber size (L×W×H) | 240×140×150 mm | 300×240×200 mm | 500×300×200 mm |
| Power supply | AC 220V / 50-60Hz | AC 220V / 50-60Hz | AC 220V / 50-60Hz |
| Rated current | 10 A | 15 A | 15 A |
| Rated power | 1000 W | 2000 W | 3000 W |
| Temperature settings | Cold / 50 / 75 / 100 °C | Cold / 50 / 75 / 100 °C | Cold / 50 / 75 / 100 °C |
| Timer settings | 5 / 15 / 30 min / Always on | 5 / 15 / 30 min / Always on | 5 / 15 / 30 min / Always on |
| Auto shut-off | Yes | Yes | Yes |

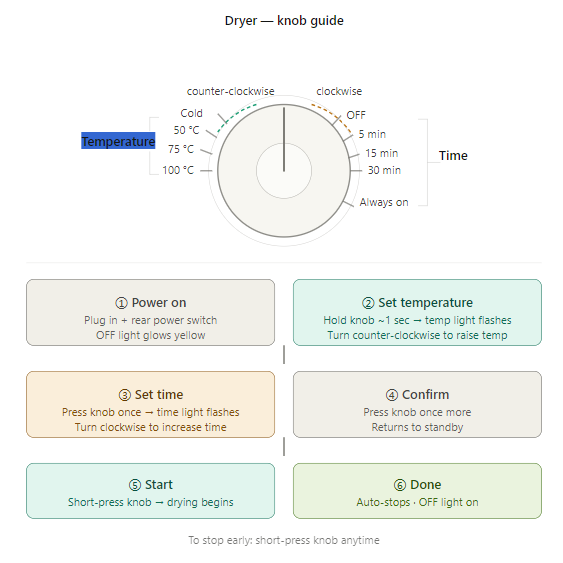

Quick Operation Guide for Dentists
Start-Up
- Ensure the unit is plugged in and the rear power switch is ON.

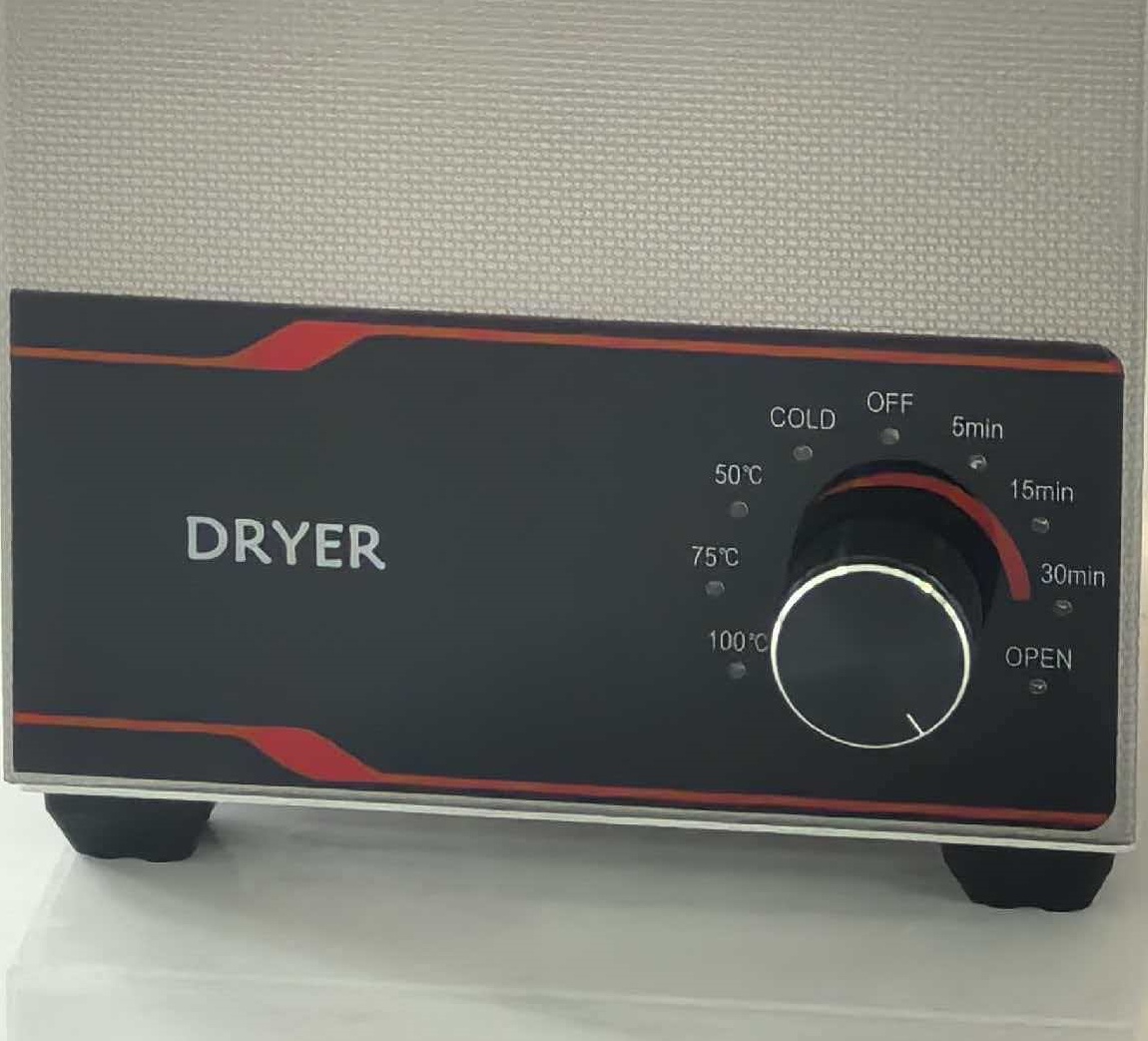

Enter Setting Mode
- Press and hold the central knob for 1 second.
- The Temperature indicator will flash, indicating entry into the setting mode.
Set Temperature
- Rotate the knob to select the desired temperature.
- Options: Cold Air, 50°C, 75°C, 100°C.
Set Timer
- Press the knob once to switch to the timer setting (the Time indicator will flash).
- Rotate the knob to select the duration.
- Options: 5 min, 15 min, 30 min, Open (Continuous).
Confirm and Start
- Press the knob once more to save settings.
- To start the drying cycle, press the knob again (Short Press).
- The “OFF” light will turn off, and the machine will begin operation.
Emergency Stop
- To stop the machine at any time, press the knob or turn it to the “OFF” position.
