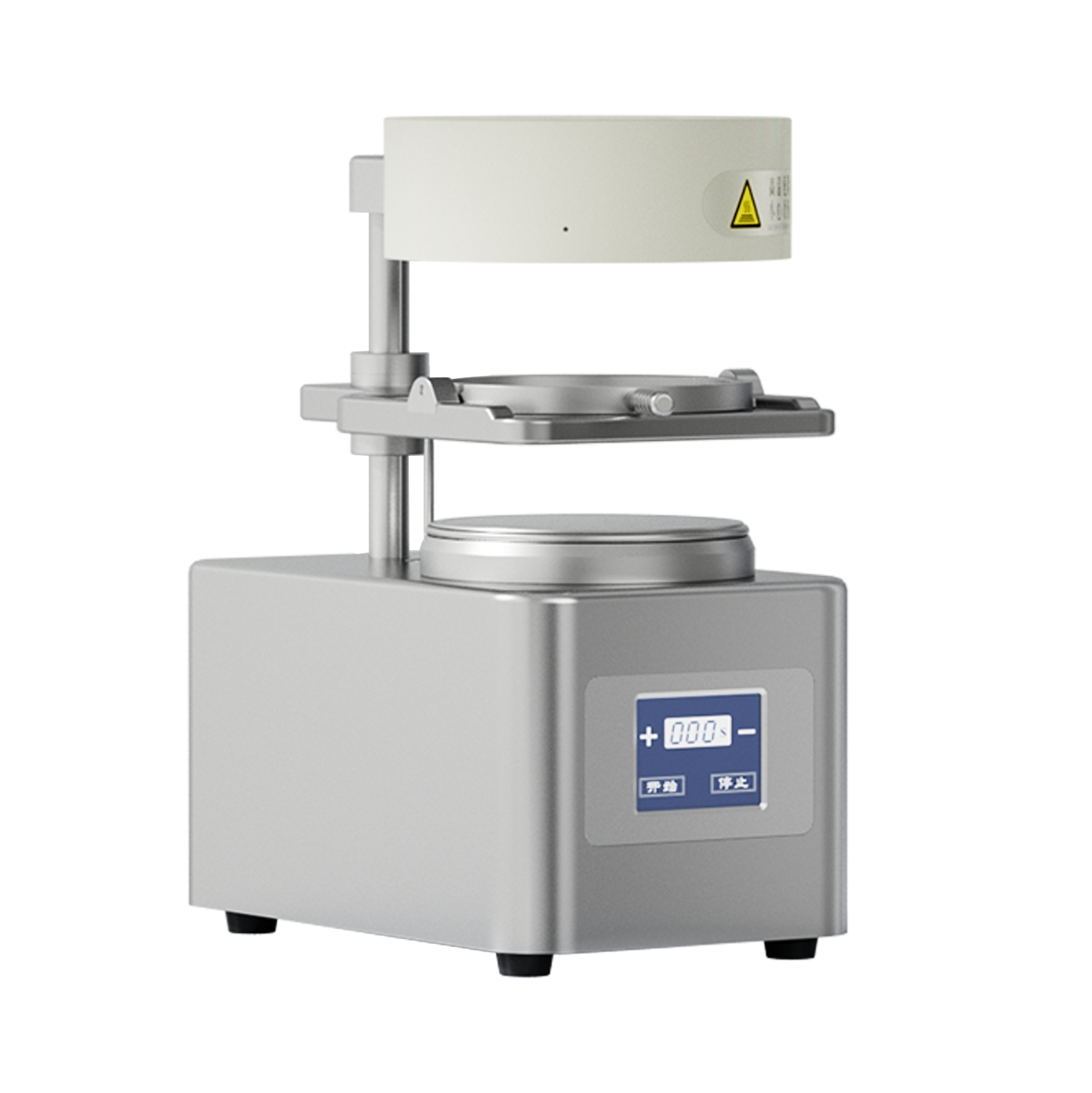

Automatic Orthodontic Appliances Former – Negetive Vacuum

Automatic Negative Pressure Orthodontic Pressing Machine

This orthodontic appliances former utilizes automatic negative pressure technology to ensure high-precision molding.

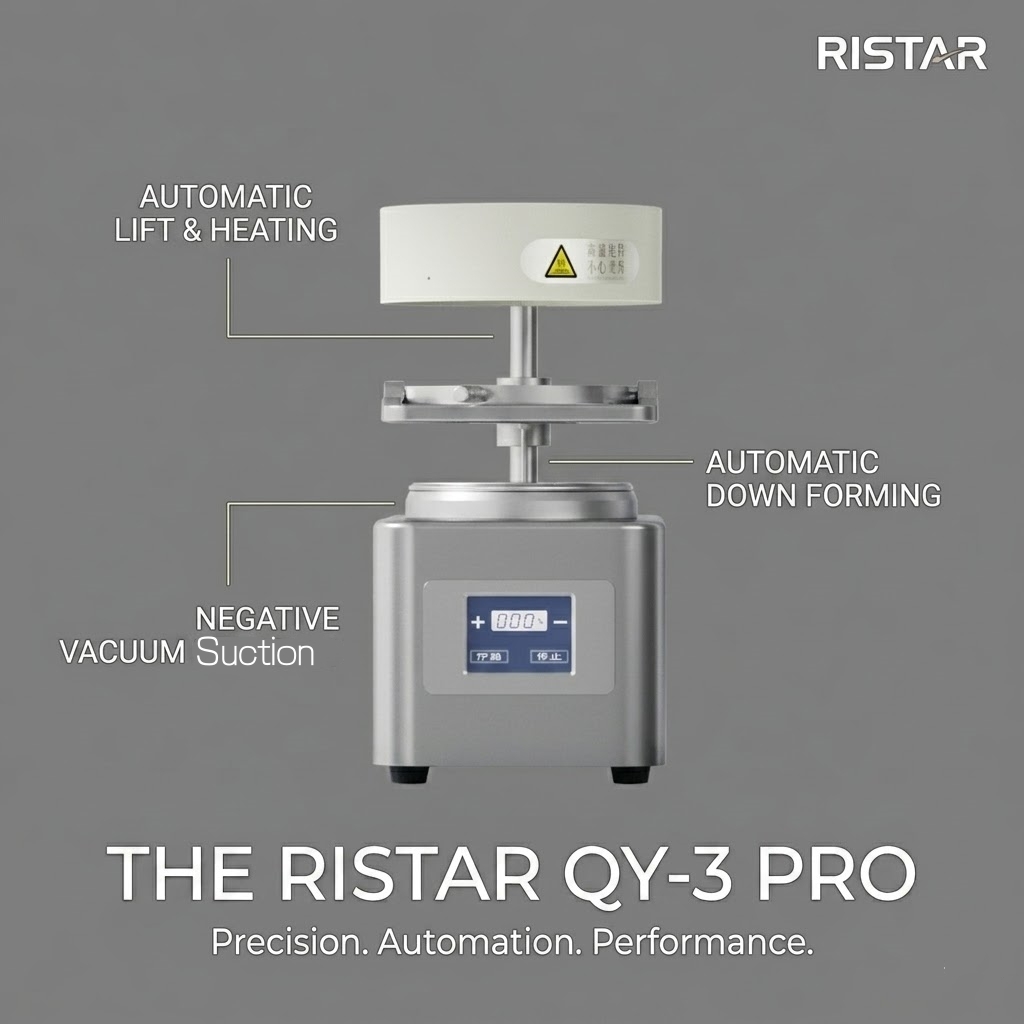

The machine features automatic heating to soften films quickly and evenly for optimal results. It performs a seamless sequence of automatic lifting for the heater and smooth downward movement for forming.

High-efficiency vacuum suction pulls the material tightly over the cast for a stable fit. This streamlined process creates high-quality retainers and sports guards with consistent reliability.

Application Ideal for dental laboratories to efficiently produce custom retainers, Aligners, sports guards, and bleaching trays.

Technical Parameters

• Input Voltage: AC 110/220V ~50/60 Hz
• Rated Power: 800W
• Heating Temperature: 220°C
• Required Air Pressure: > 0.5 Mpa
• Vacuum Degree: < 93 Kpa
• Dimensions: 280 x 158 x 318 mm
• Weight: 4.0 kg

Operation Tutorial Sequence

1. Connect Power & Air: Plug in the machine and attach the 6mm external air tube (used for vacuum suction).
2. Place & Lock Sheet: Lay the plastic film over the base plate and secure it with the metal locking ring.
3. Set Time & Start: Tap the screen to select the heating time, then press start.
4. Automatic Heating: The top heater warms the plastic until it softens evenly.
5. Auto Lift & Load Mold: The heater automatically rises. Quickly place your dental mold on the base.
6. Automatic Down Forming: The machine smoothly lowers the heated film over the mold.
7. Negative Vacuum: The vacuum system instantly pulls air out, sucking the plastic tightly around the mold for a precise fit.
8. Finish: Remove the locking ring, lift off the formed dental piece, and you’re ready for the next cycle.
