Wet Milling for Laboratory CAD/CAM Fabrication Prosthetic

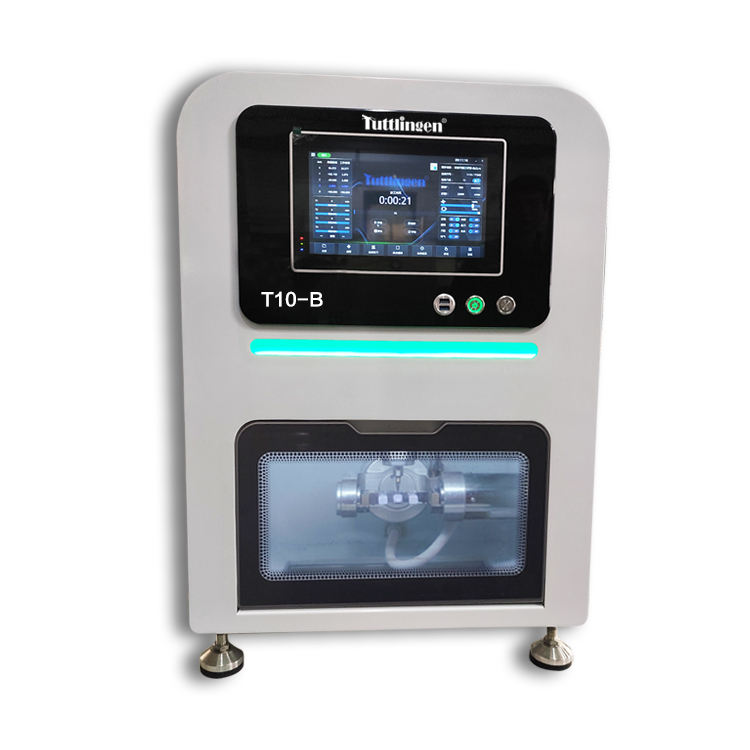

It is a high-performance wet milling unit engineered for versatile dental laboratory fabrication.
It is fully compatible with Sirona systems and effortlessly processes lithium disilicate (e-max), PMMA, zirconia, and pre-milled titanium abutment blank.
A powerful 60,000 rpm water-cooled spindle ensures razor-sharp margins for aesthetic veneers and complex crowns.
Driven by precision servo motors, the machine provides the consistent stability required for demanding, non-stop lab environments.
Its advanced 5-axis linkage handles intricate geometries with 10μm accuracy for a perfect fit every time.
This dentistry milling unit is the ultimate solution for labs seeking industrial-grade reliability and flawless restorative results.
Parameter
1. Performance & Precision
| Parameter | Specification |
| Milling Mode | Wet milling |
| Axis Movement | 5-Axis (A-axis: 360°, B-axis: ±30°) |
| Processing Accuracy | 0.01mm |
| Repetitive Accuracy | 0.008mm |
| Milling Range (X/Y/Z) | 150 x190 x150mm |
| Processing Speed | 0-10,000mm/min |
2. Mechanical & Hardware Specs
| Parameter | Specification |
| Max Spindle Speed | 60,000 rpm/min |
| Spindle Power & Type | 1.5kW /Water-cooled |
| Drive Mode | Servo motor |
| Tool Capacity | 8 pieces (Automatic conversion) |
| Tool Shank Diameter | 6mm |
| Weight | Approx 145 kg |
| Dimensions (H xW xD) | 575 x688 x855mm |
3. Compatibility & Integration
| Parameter | Specification |

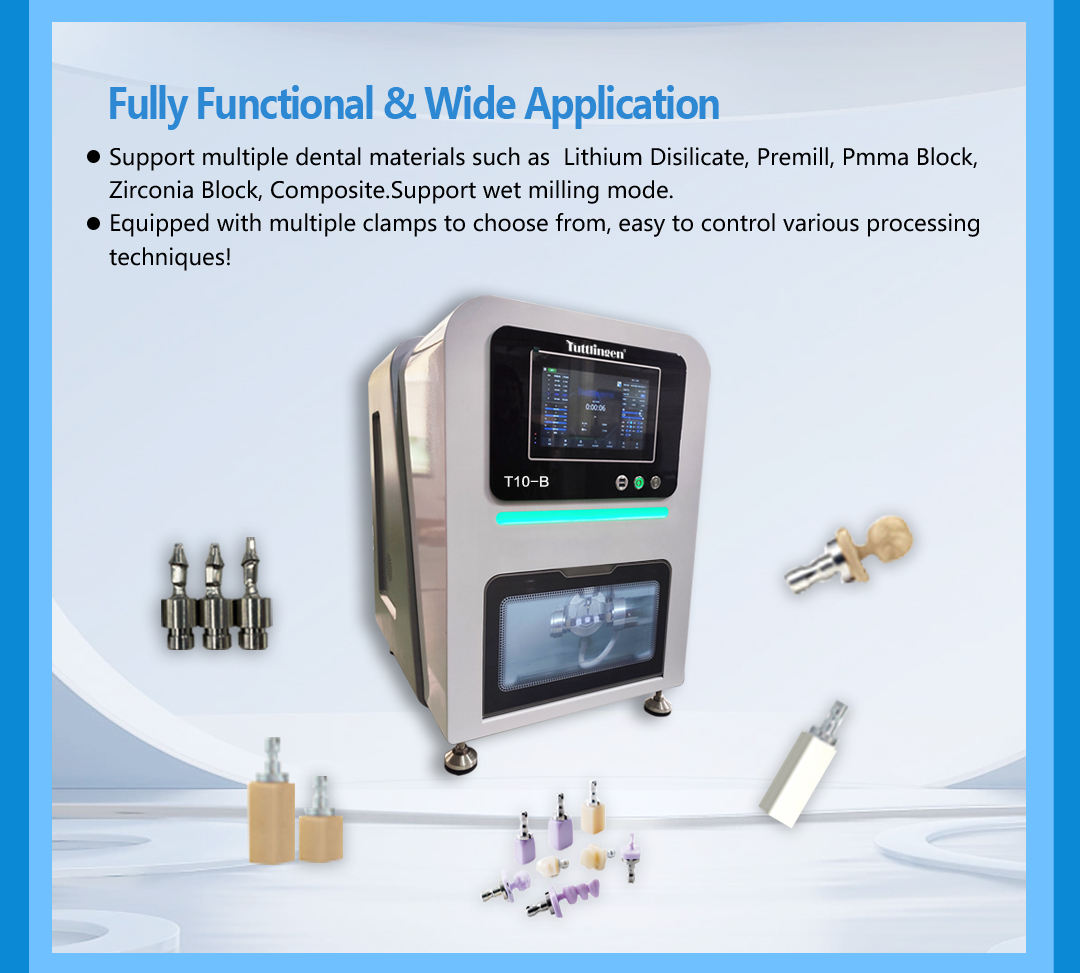

| Machinable Materials | Lithium Disilicate, Premilled Abutments, PMMA, Zirconia, Composites, PEEK |
| Control System | Self-developed intelligent industrial control system |
| CAM Software | Hyperdent |
| User Interface | 10-inch touch screen |
| Power Supply | AC220V 50-60Hz (Overall power 3.5 kW) |

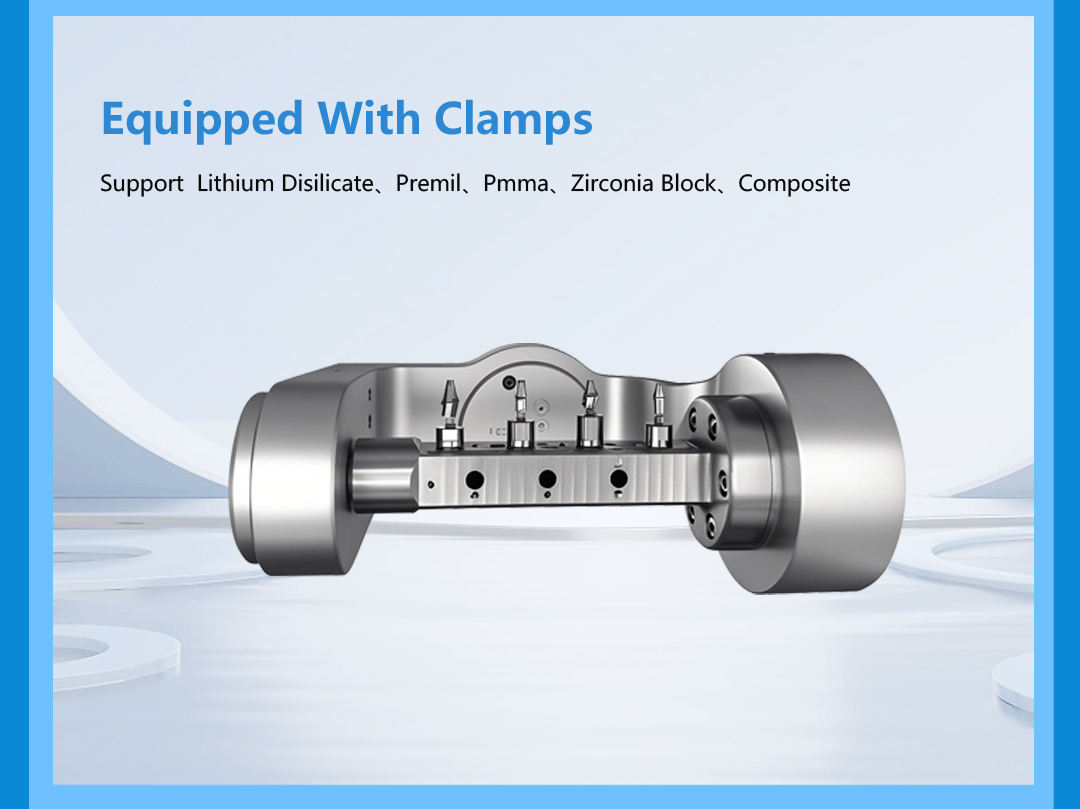

| Clamping Method | Exclusive Clamps |
